e3crvSmooth

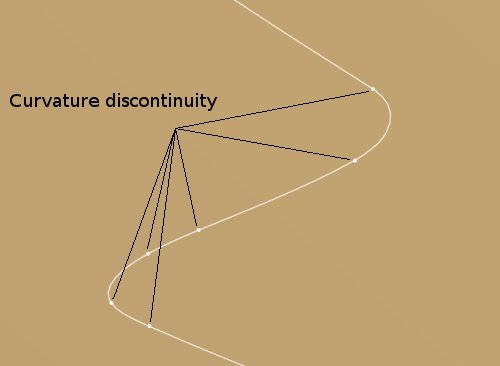

smooths curve from several segments to single curve with curvature continuity

                Same as internal function Curve Smooth with curvature continuity option.
                But saves a few clicks with every time filling of Curve Smooth Definition table.
                New created curve is without history and input curve is removed.


                                   Start the macro and select a curve.

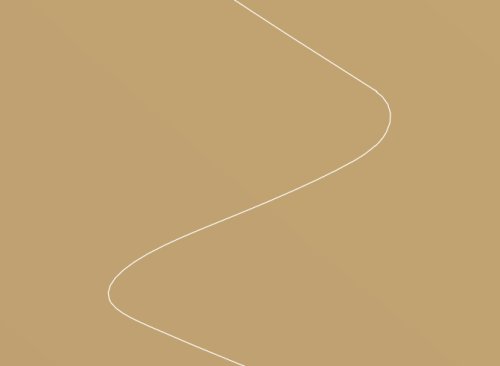

                                   Selected curve is replaced with new curve.



                               The source code you can download here.
