e3cutSymbol
creates the symbol of a cut in drawings from the selected line and the given letter

                A text on one side is C(xx) and on the other side C, for example.
                The user has the possibility to swap the arrows direction

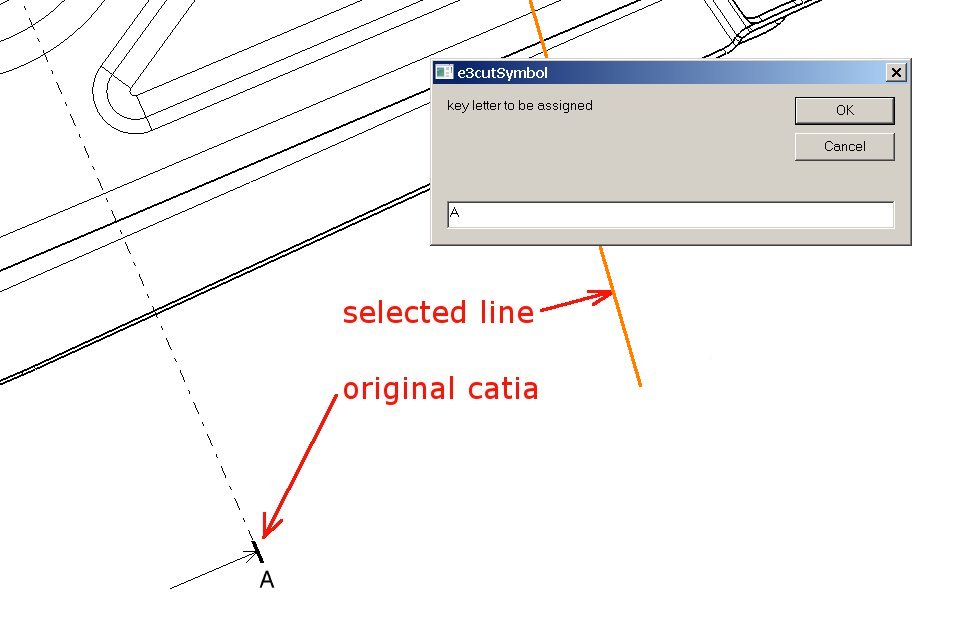

                                   1. select line
                                   2. run macro
                                   3. key letter

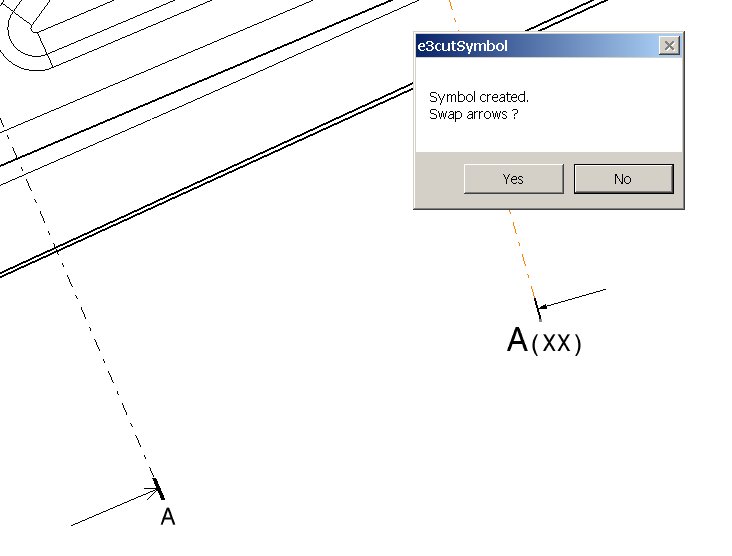

                                   4. swap the arrows direction






                               The macro you can download here.
