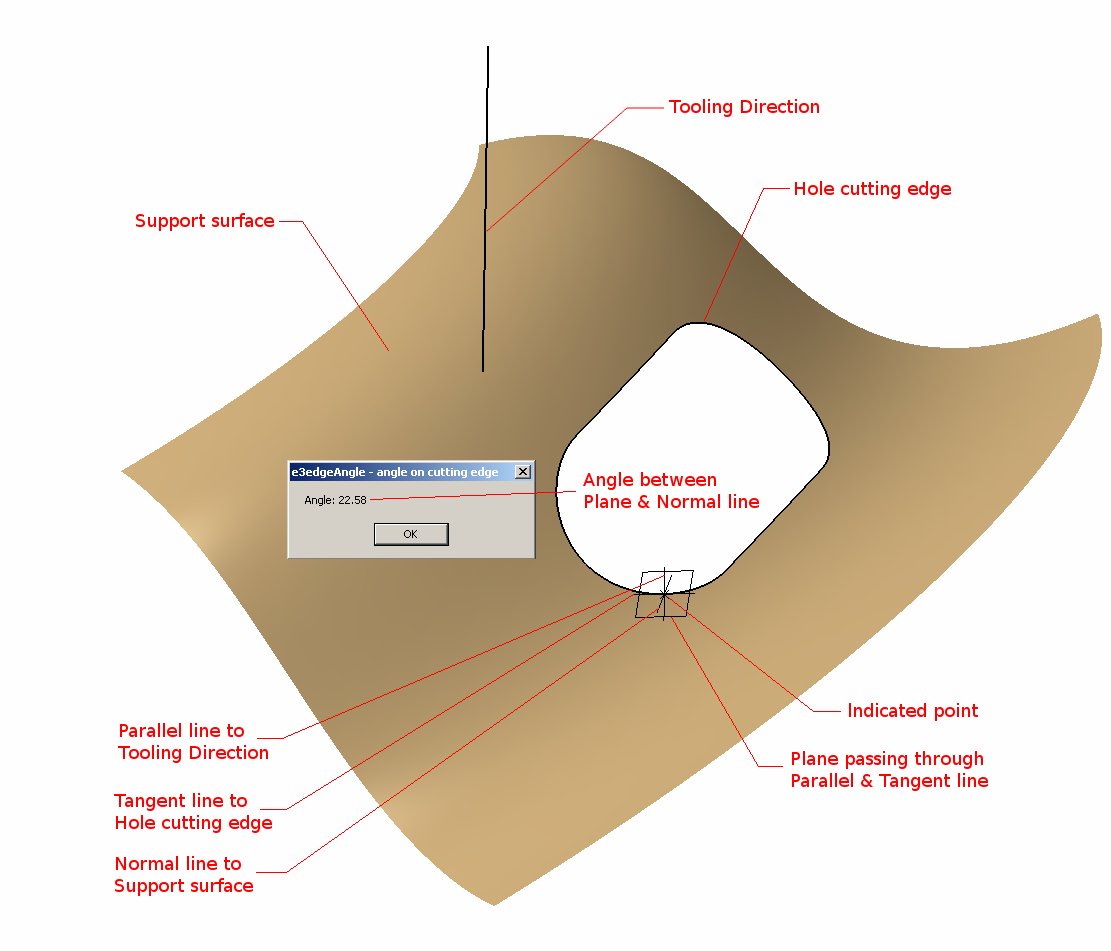

e3edgeAngle
computes angles on cutting edges.

                The computed angle show a deviation between:
                  teoretical cut (in normal direction)
                  and
                  real cut (in tooling direction)

                                   usage:
                                   - start macro
                                   - select line to set tooling direction
                                   - select curve to set cutting edge
                                   - select a support surface
                                   - indicate point on edge (don't rotate with model within indication !!!)
                                       the macro displays angle
                                   - indicate next point on edge to get next angle or press Esc to exit macro.




                               The source code you can download here.
