e3ntool

simulates VW ntool to keep mask for writing to the kvs system

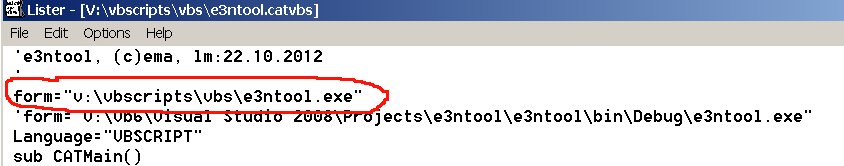

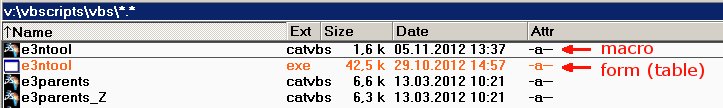

instead of the original VW ntool, the macro don't write internal stamp to the catia document macro change the name and part number of catia document and save it to the current directory for just now created document the current path is not defined yet, then the macro can not write this document user have possibility to write its own mask too (on bottom line of the ntool table) fill out the table and save document The macro uses 2 files: e3ntool.catvbs ... main file e3ntool.exe ...... form file Edit 3rd line of e3ntool.catvbs to set your current path to the form file.

The source code you can download here.
