e3schrauben
the macro automatically inserts screws and pins into the assembly     NEW

                the macro enables the cyclical insertion of one part after another, so the work is very fast
                the macro places the screws and pins in the assembly using the constrains obtained from the selected hole
                the macro also enables the CATIA REUSE PATTERN to be used on the fly
                depending on the selected hole and hole depth, the macro will determine the size of the screw or pin
                and the user has the option to confirm or change the selected size
                the user can select a screws and pins from the library where all dimensions are available
                the user can also choose the screw strength and screw or pin extension
                the user can also fix the size of the screw or pin and then the insertion is even faster
                after the user confirms the correct size, the macro inserts a screw or pin into the assembly and renames it correctly
                it means a new physical part name, partnumber and instance name is created
                new name contains dimensions of the screw or pin, AE index, BEMI number, strength index
                the AE index and BEMI number are retrieved by the macro from the assembly
                finally, the macro saves the new part in the same directory as the assembly
                for example:
                31-38N_500545_________0908_040_____A00_ZYLSCHRAUBE_M8X40_DIN912_8_8
                31-38N_500545_________0926_040_____A00_STIFT_DIN7979D_6X40

                installation is very simple:
                put the macro, the library folder and the ini file from the zip file in the same directory.
                in the ini file you can change the standard screws and pins extension, the first value is default

                zip file contains:
                e3schrauben folder - library - this folder contains two parts - the default screw and the default pin
                e3schrauben.catvba - macro
                e3schrauben.ini - ini file, contains licence, names to the default screw and the default pin in library
                (you can have the default screw and the default pin or you can have the own special screw and the pin)
                and on the last line there are extensions, they can be freely set differently as needed

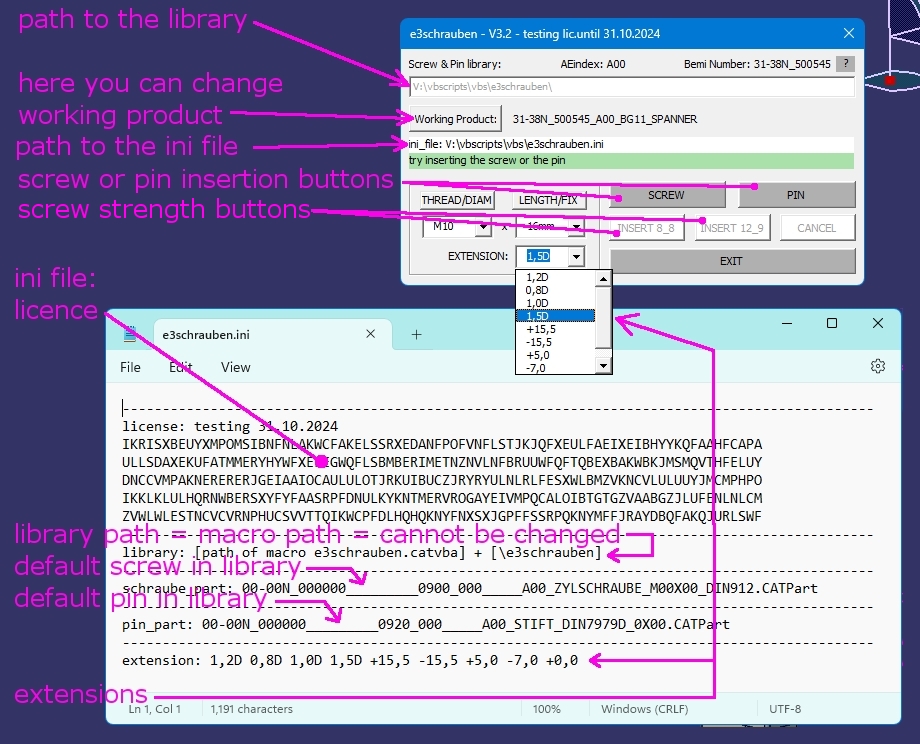

                                   The Macro and the ini file:

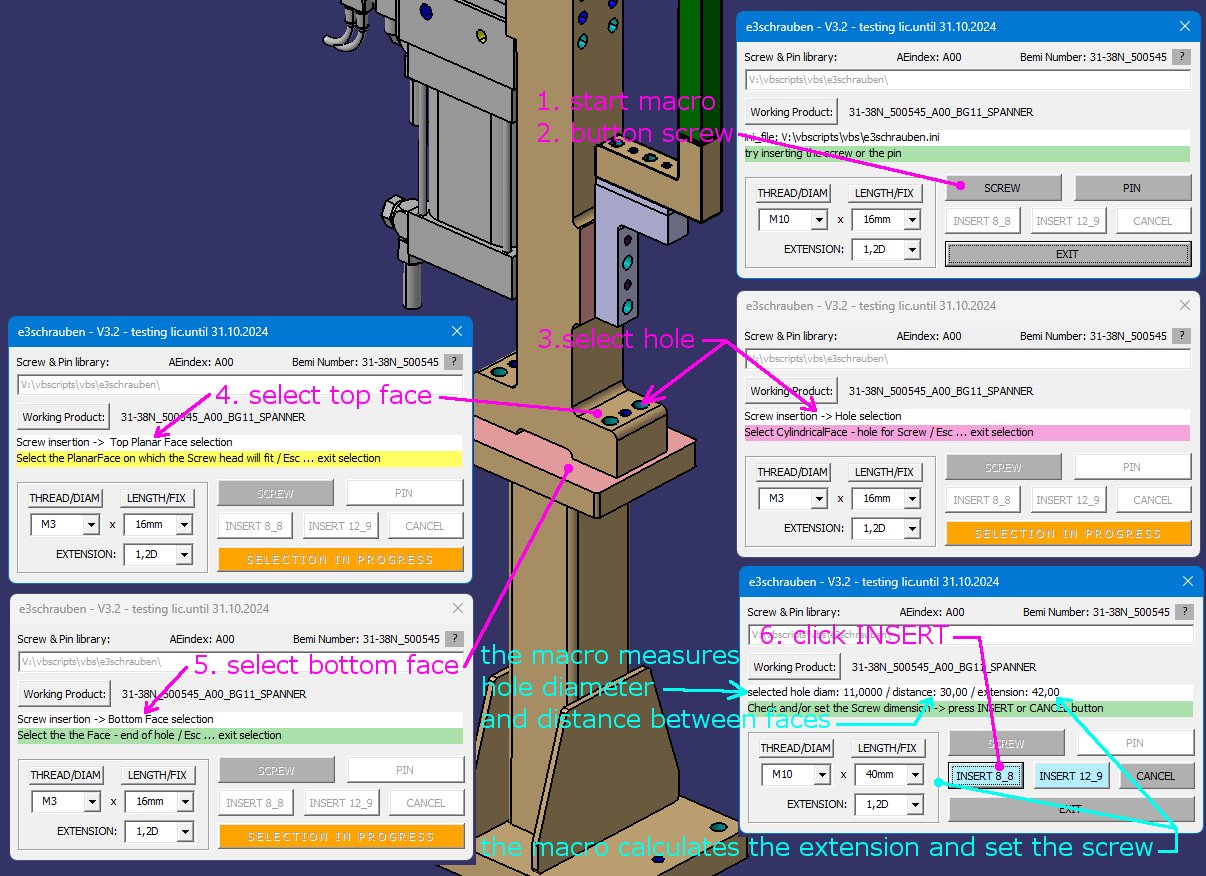

                                   Example of macro usage:

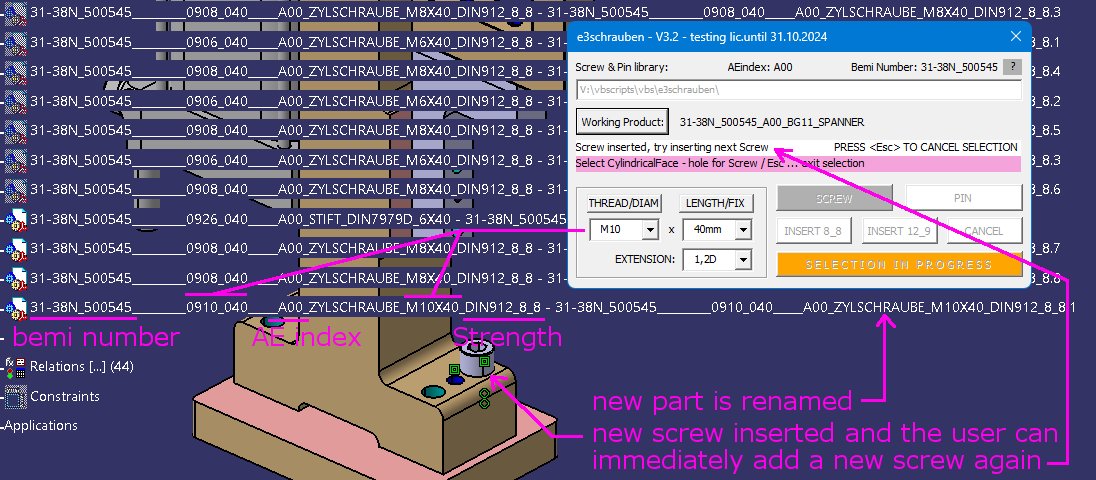

                                   Example of macro result:

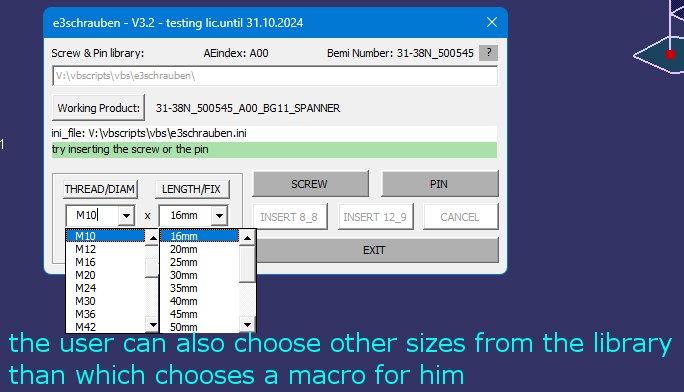

                                   Selecting the sizes of screws and pins:

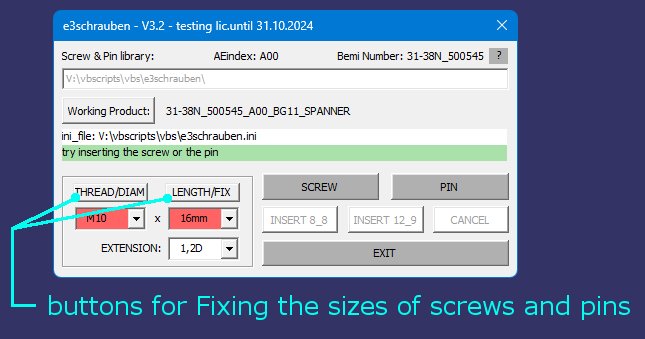

                                   Fixing the sizes of screws and pins:







                               The macro you can download here.
