FUNCTION MODIF.   DESCRIPTION
EMA01059 31.05.00 changes drawings according to VW 010 59

   Checks and modifies drawings elements according  to VW standard 010 59. Graphics
   Attributes of  elements are changed so  that plotting is supported  in both ways
   according to  colour or thickness. The function does not change  invalid details
   and does not degenerate annotations.

   Changes in the model:
   COL (colour) none ... transparent elements, colours are given by layer, set, ...
                any  ... it is possible to set the colour of elements
                         colour 1 or 0 is mostly used
   ELEMENTS       LAY     COL  DESCRIPTION
   axis systems   000     none AXS, AXSD
   space geometry 001-040 none SUR, FAC, SKI, SOL, DMU
   space changes  041-080 none SUR, FAC, SKI, SOL, DMU
   space others   081-120 none support geometry
   space + draw   121-180 none views, cuts, details
   space + draw   181     any  cutting edge contour
   space + draw   182-185 none welding points
   space + draw   186 RPS none points
   space + draw   187-237 none other points
   space + draw   238     any  cars grid XZ
   space + draw   239     -"-  cars grid XY
   space + draw   240     -"-  cars grid YZ
   dimensions     242     any  DIM
   patterns       243     none SHAP
   draw           244     any  texts, tables, axis lines, arrows
   draw           249     none joint areas
   draw           250     any  frame description
   draw           251     none support points - frame origin
   frames         252     any  frames, support frames, points of frame position
   draw           253     none changes field
   draw           254     none list of layers table
   CHANGE GRAPHICS STD TO VW ........................... YES/NO
   ACTIVATE AXS1+MASTER WSP,PUT AXS1 TO LAY 0 .......... YES/NO
   DELETE AXS+AXSD ..................................... YES/NO
   ERASE UNUSED DETAILS+SYMBOLS ........................ YES/NO
   ERASE ELEMENTS IN NO SHOW ........................... YES/NO
   DELETE EMPTY VIEWS+SETS ............................. YES/N0
   PUT VA FORMAT TO LAY 252 AND CHANGE COLOR ........... YES/NO
   CHECK INFINITE FRAME AND CREATE FRAME IN VIEWS ...... YES/NO
   CHANGE SHAP,ARWD,AXSD,AXIS LINES,CUTTING EDGE CONTOUR YES/NO
   CHANGE GRID (COLOR) ................................. YES/NO
   CHANGE ANND (LAYER AND GRAPHICS) .................... YES/NO
   CHECK 2000 MD ....................................... AUTO
   *TXTD - font EUDT_VCF, height/thk/col 3.5/0.35/1, 5/0.5/3, 7/0.7/4
   *DIMN - font EUDT_VCF, height 3.5, thk 0.35, dim.line thk 0.18, .....
   dim. and extens.lines, symbols, tolerances, assoc.text is checked and modified)
   *SHAP - colour white, thickness 0.18
   Degenerated annotations are moved to layer  8. The space elements stay unchanged
   because somebody  uses old fashioned  methods to use  space elements and  lot of
   filters for generation of drawings.

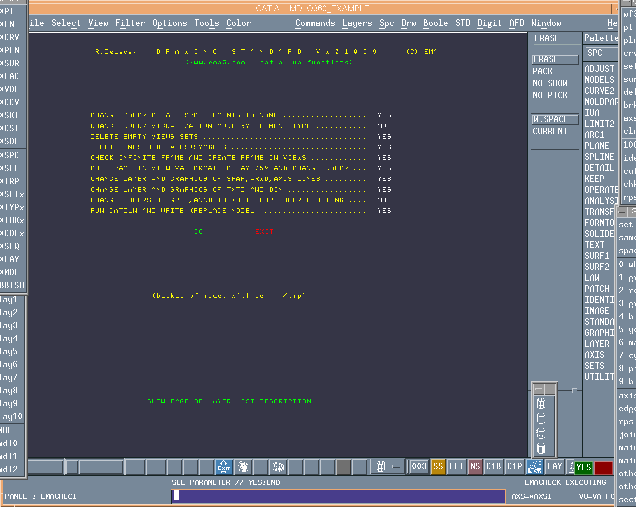

   PICTURES: half size (java)
             real size (java)
             half size (html)
             real size (html)

EMA4VIEW 31.12.99 creates a drawing with 4 view (LIFORM, HMB, ...)
EMAAREA  14.09.01 computes the area of SUR and FAC selected by multisel.
EMAAXIS  15.01.02 creates axis of crv,sur and faces domains
EMABEND  08.12.00 bends - develops sheet parts
EMABREAK 23.06.00 breaks surface by another element
EMAC1B   10.10.99 boundaries on sur, fac, soe
EMAC1P   24.07.02 projects crv or ln on pln, sur, fac
EMAC2C   06.09.98 tang.connects pt with end of ln or crv
EMACMP   15.10.99 compares catia models (sur, fac)
EMACOLOR 21.08.00 analyzes color of elements
EMACOORD 28.11.00 creates draft text with point coordinates
EMACRV   20.04.00 creates crv from points selected by multisel.
EMACUT   21.05.01 creates CUT symbol from line (AUDI, SKODA, VW standards)
EMACUTS  13.08.99 creates views from planes selected by multisel.
EMADELAP 09.02.99 deletes applications
EMADELDV 30.05.02 deletes unused details and symbols, empty views and sets
EMADELFC 08.09.99 deletes fac identical with support.sur
EMADELFL 11.06.99 deletes filters
EMADELNS 15.08.00 erases elements in the NOSHOW area
EMADGT1  22.11.00 digitalization - selects points by deviation
EMADGT2  18.11.97 digitalization - selects points by projection
EMADGT3  18.11.97 digitalization - creates a line normal to element
EMADGT4  18.11.97 digitalization - lines from two points
EMADGT5  13.12.98 digitalization - reduces num.of points
EMADGT6  18.11.97 digitalization - translates selected control points of sur
EMADGTX  30.04.99 digitalization - places model on points
EMADIMB  18.11.97 puts an dimension into brackets
EMADROP  09.02.04 drops links to the external (ovl.) models
EMADOTS  01.02.00 creates a dot mask on the front glass of the car and develops the glass
EMADUPL  11.01.00 deletes dupl.elements
EMADVL   22.03.99 develops sur, fac - computes a cutting edge
EMAEDGE  21.09.01 computes characteristic points on sheet edge
EMAELIM  19.09.99 erases too short elements
EMAERASE 01.01.97 erases elements
EMAFAC   31.05.01 changes a lay of fac to lay of support. sur and vice versa
EMAFLEX  18.12.00 flexible deformation of crv, sur, fac
EMAFLT   10.10.99 quick set of filters
EMAFOCUS 18.09.01 search coordinates of a drawing fields
EMAGAPE  04.04.00 deforms a boundary of sur
EMAGAUSS 09.04.99 gausses analysis for sur and fac
EMAGLASS 23.01.00 cars front glass analysis
EMAGRID  18.01.02 100-grid with coordinates
EMAHIGH  12.02.99 moves highlighted elm to NO-SHOW
EMAHOLE  15.09.98 makes the grid of holes
EMAIAN   30.08.98 isolates all annotations in drawings
EMALAY   22.08.01 changes the current layer, line style and sets std
EMALAYT  24.01.00 transf.elements to the selected layer
EMALINK  01.01.97 links all sets in a model
EMALIST  02.06.03 find catia models
EMANSS   29.08.98 puts to NO-SHOW background sur
EMANURBS 18.11.98 converts faces with one bund.to an ordinary form
EMAOFFS  24.11.00 creates parallel crv on sur through selected pt
EMAOI1   02.03.99 isolates lines and curves by multisel.
EMAPATCH 11.01.00 creates patch from pt, ln, crv, sur
EMAPICT  21.11.00 creates pictures A3 or A4 with the logo of your company
EMAPLN   01.01.97 creates a plane from an array of points selected by multisel.
EMAPLNA  08.04.00 creates a plane by an angle from pln and ln or crv
EMAPLNI  17.08.99 puts info text (equation) on the plane
EMAPOLYH 24.10.01 converts polyhedral surfaces (POL) -> polynomial surfaces (SUR)
EMAPOLYN 17.05.00 converts nurbs sur -> polynomial sur
EMAPT    20.08.02 creates limit points or a point from elements intersection
EMARPS   14.09.01 creates and or modifies the RPS table
EMAS2I   17.02.99 deletes history from surfaces
EMASECT  09.04.02 dynamic section through model (FAC+SUR)
EMASHAP  10.09.02 support for exploded drawings (VW, AUDI, ...)
EMASHS   12.12.98 picks sur from NO-SHOW
EMASKIN  06.08.01 skin autosearch
EMASPEED 01.01.98 speedmeter
EMASTDPF 10.12.98 sets peguform catia standard
EMASTDVW 02.07.01 sets vw catia standard
EMASTUP  04.09.00 loads draw std from start-up model
EMATAB   15.08.01 creates a draft table of point coord. from pt selected by multisel.
EMATAB1  30.05.00 prints a table of coordinates to file from pt selected by multisel.
EMATXT   01.01.97 creates a 3D text of pt or axs coordinates
EMATXT1  03.02.00 creates a 3D table of coordinates of pt selected by multisel.
EMATXT2  11.12.98 creates a 3D text of hole coordinates + diameter
EMATXT3  10.08.01 reads txtd and creates 3D pt
EMAVUCHK 19.09.99 checks and modifies the view depth
EMAVUCUT 07.05.00 makes a cut from the space model
EMAVUID  19.09.01 view description (VIEW, SECTION, DETAIL, SCALE, ...)
EMAWF3   02.05.00 analyses WF3 elements
EMAWIRE  01.11.01 converts curves to lines and circles for wirecut machines
EMAWHITE 07.11.00 changes background color of the screen WHITE/NORMAL
EMA_XYZ  10.10.98 fast changes of screen X, Y, X, XYZ, D, 2W, 4W with reframe
